DESOI spirlveida enkuru sistma

More Informations

DESOI Spiral Anchor

material stainless steel

9 Show Variants

DESOI Spiral Anchor

material stainless steel V4A (frontal red)

6 Show Variants

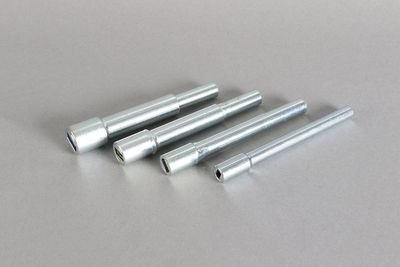

Screwing-in device

to screw in the DESOI Anchor (anchoring, pinning)

4 Show Variants

AS175 Brick and mortar saw - complete set

AS175 all-purpose saw (1.400 W), all-purpose blades, penetrating blades, heavy duty dust funnel, torque wrench, spare blade screws (4 x), transport bag

to remove bore dust out of boreholes, stainless steel tube Ø 5 x 530 mm

to pre-wet boreholes, spray lance Ø 10 x 400 mm, 4 lateral outlets Ø 2 mm, water connection Geka coupling

DESOI Spiral Anchor Mortar

15 kg bucket, incl. technical data sheets Tested by the Technical University Braunschweig, test no. 1065/7363 a, and by MFPA Leipzig (Institute for Materials Research and Testing), test report U 2.1/06-351, fire test acc. DIN EN ISO 11925-2, class E. INFORMATION: Building chemical products are subject to specified transport and storage conditions, in order to guarantee the quality and functionality. Thus, a return of such products is excluded.

with material tube, without accessories

Pneumatic pointing gun

with material tube, air plug

for filling the material tube

2 Show Variants

internal thread R3/4", for polymer and metal nozzles

external thread G3/4"

10 Show Variants

Plunge blades

ideal for cutting square openings into the masonry, plumbing work and electric installations, single brick removal, cuts to a depth of 120 mm without overcutting. depth 120 mm, width 7.2 mm, 1 pair

ideal for cutting small square holes, e.g. for electrical switches, depth 120 mm, width 7.2 mm, 1 pair

General purpose blades

used for efficient and low-dust cutting of bricks (up to 50 mPa) and mortar. Also used for cutting wood, tree roots. depth 115 mm, width 7.2 mm, 1 pair

XL General purpose blades

cutting depth 170 mm, ideal for wall breakthrough, low-dust. depth 170 mm, width 7.2 mm, 1 pair

Precision joint blades

ideal for removing mortar from vertical joints without overcutting, optimal control and precision without damaging the surrounding masonry. depth 75 mm, width 7.2 mm, 1 pair

Page

DESOI spirlveida enkuru sistma

Spirālveida enkurs ir skrūves veidā izveidots nerūsējošs tērauds, kas tiek izmatots ieplaisājušu mūru remontam. Mūrniecības darbos spirālveida enkurus izmanto plaisu platuma ierobežošanai. Lai izveidotu spēcīgu saikni starp spirālveida enkuriem un mūra veidiem, piemērota ir DESOI spirālveida enkuru java. Kvalitatīvai enkuru ielikšanai tiek piedāvāti DESOI īpašie instrumenti (akmens un betona zāģis AS 170 / aizpildīšanas tehnika).

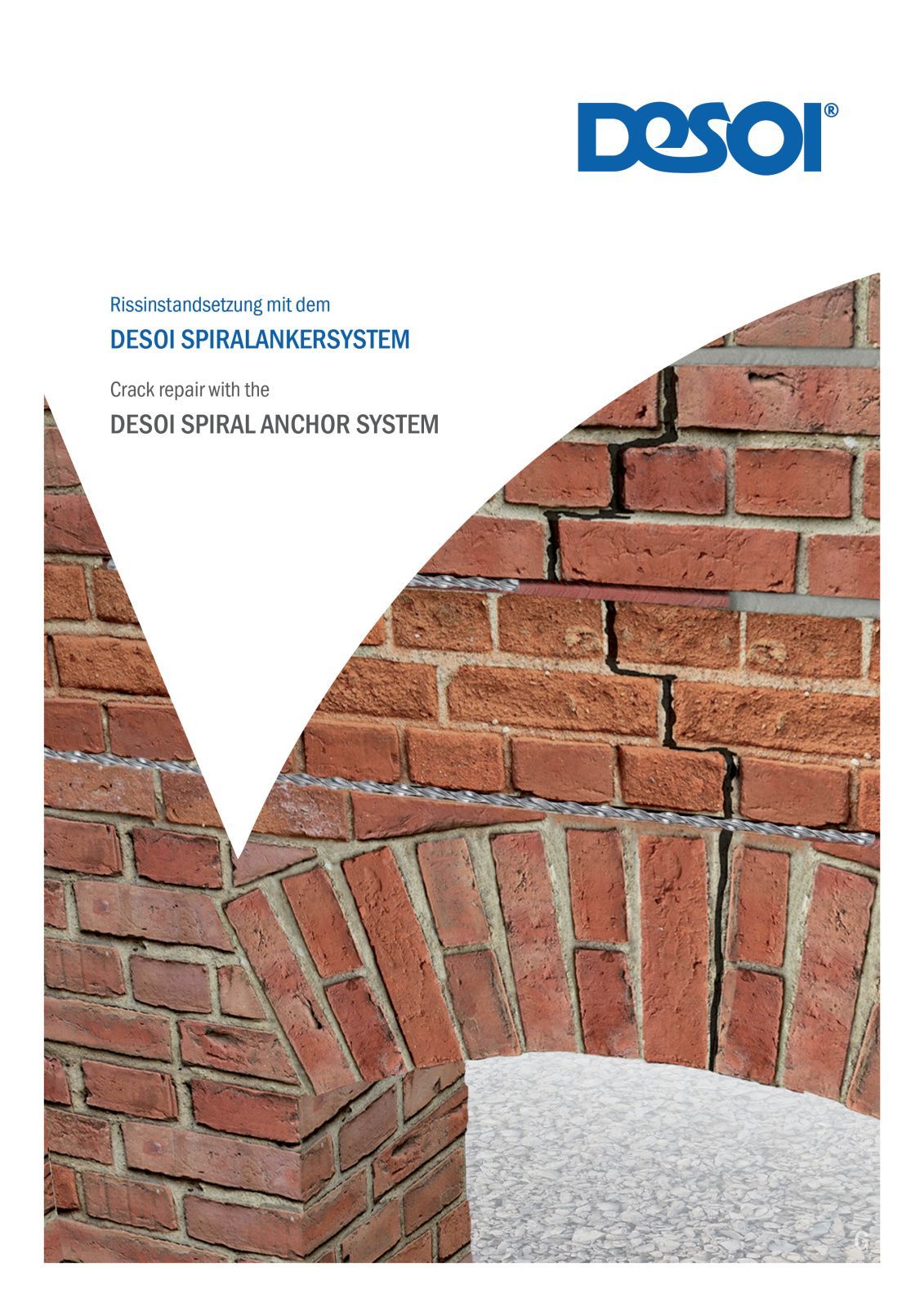

Rissinstandsetzung mit dem DESOI Spiralankersystem

Crack repair with the
DESOI Spiral Anchor system

PDF german/english

PDF german/french

Priekšrocības un ieguvumi

Minimāla ieķeršanās mūrī
Var izmantot gandrīz visu veida mūros
Spirālveida enkurs darbojas kā vēlāk ievietots pastiprinājums
Esošās plaisas tiek pastāvīgi novērstas
Nepastāv korozijas risks
Var izmantot uz nedaudz mitrām plaisu malām
Sertificēta sistēma
DESOI - plānošanas pakalpojumi/ieteikumi (specifikācijas)

Pielietojuma jomas

Plaisas fasādes vai ailu zonā
Plaisas salaidumu zonā vai arku salaidumu zonā
Mūra korpusu savienojuma/aizmugurējā noenkurošana
Objekti pieminekļu kopšanas jomā

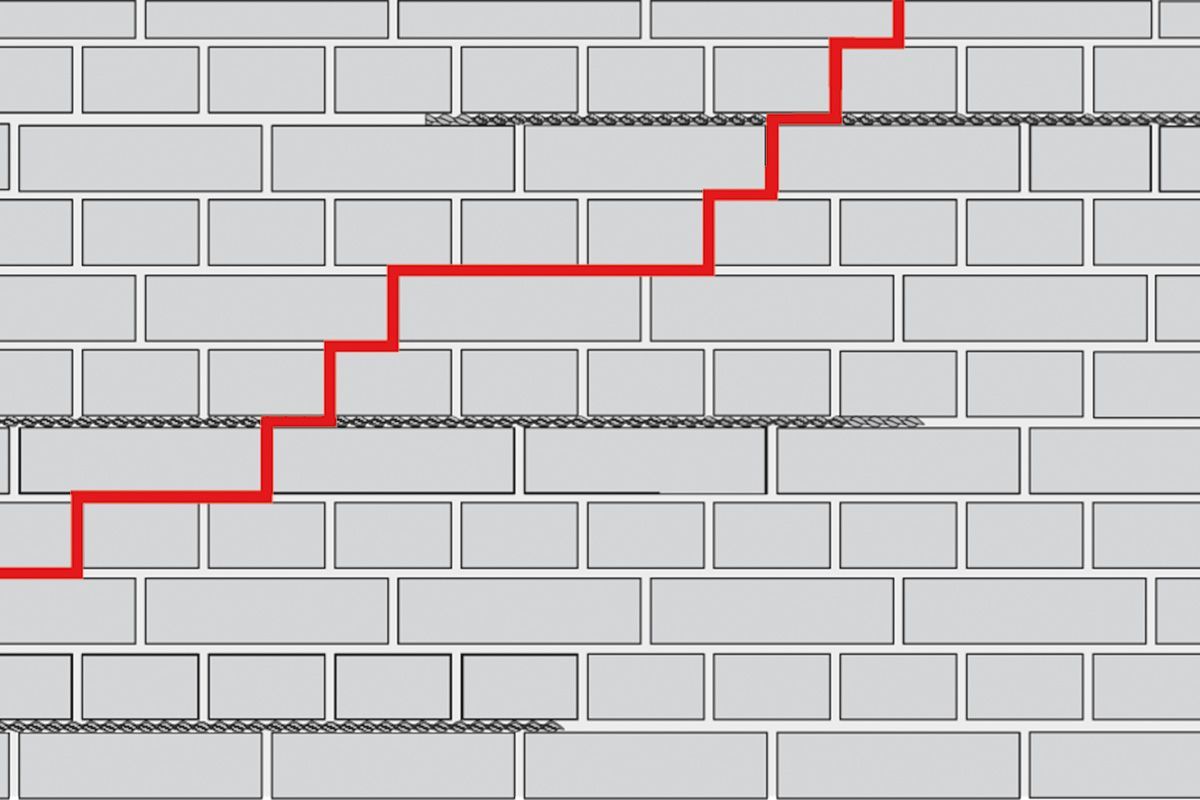

Cracks in masonry

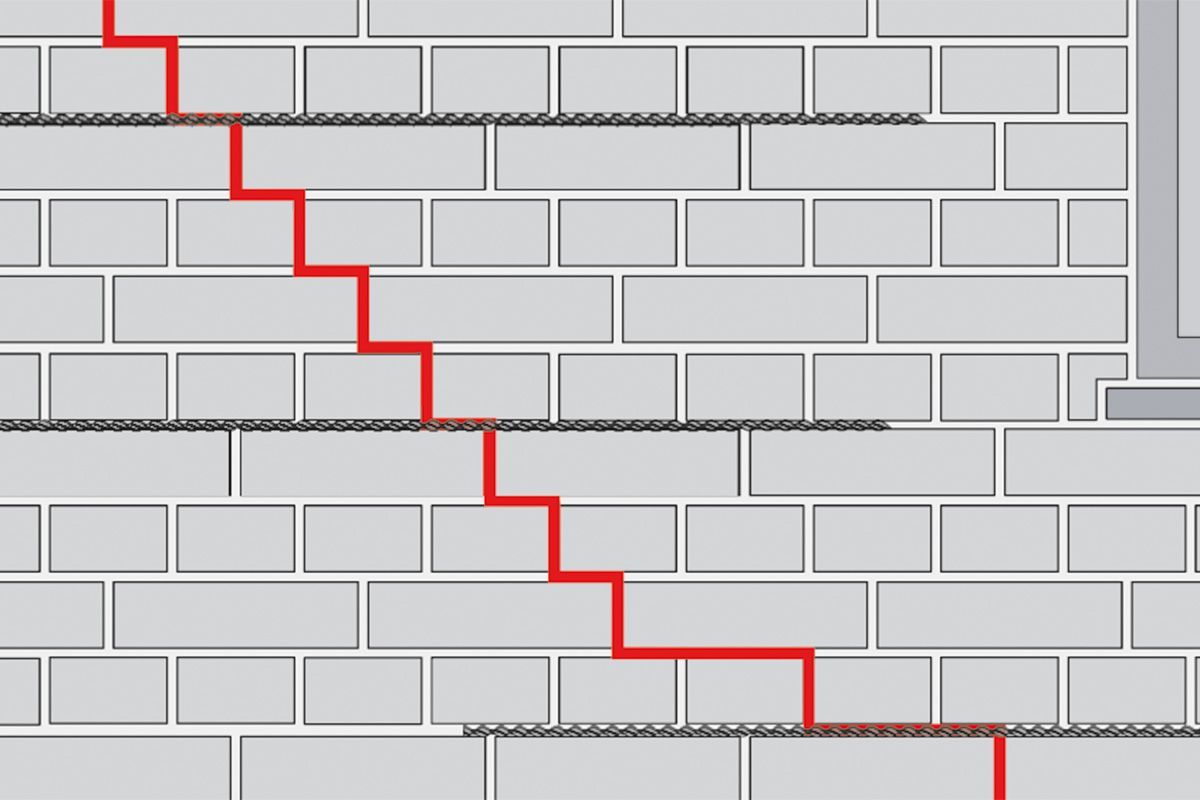

Cracks in the area of openings

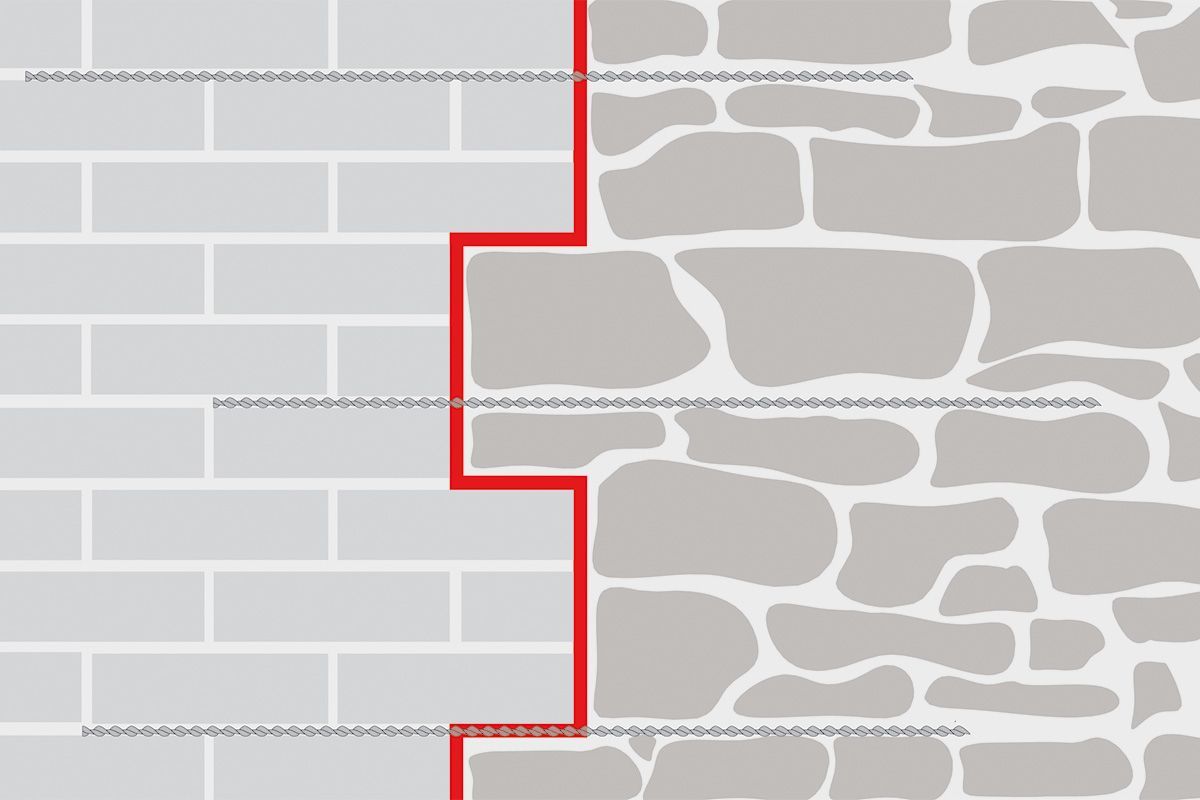

Cracks in masonry choring e. g. of natural stone facing

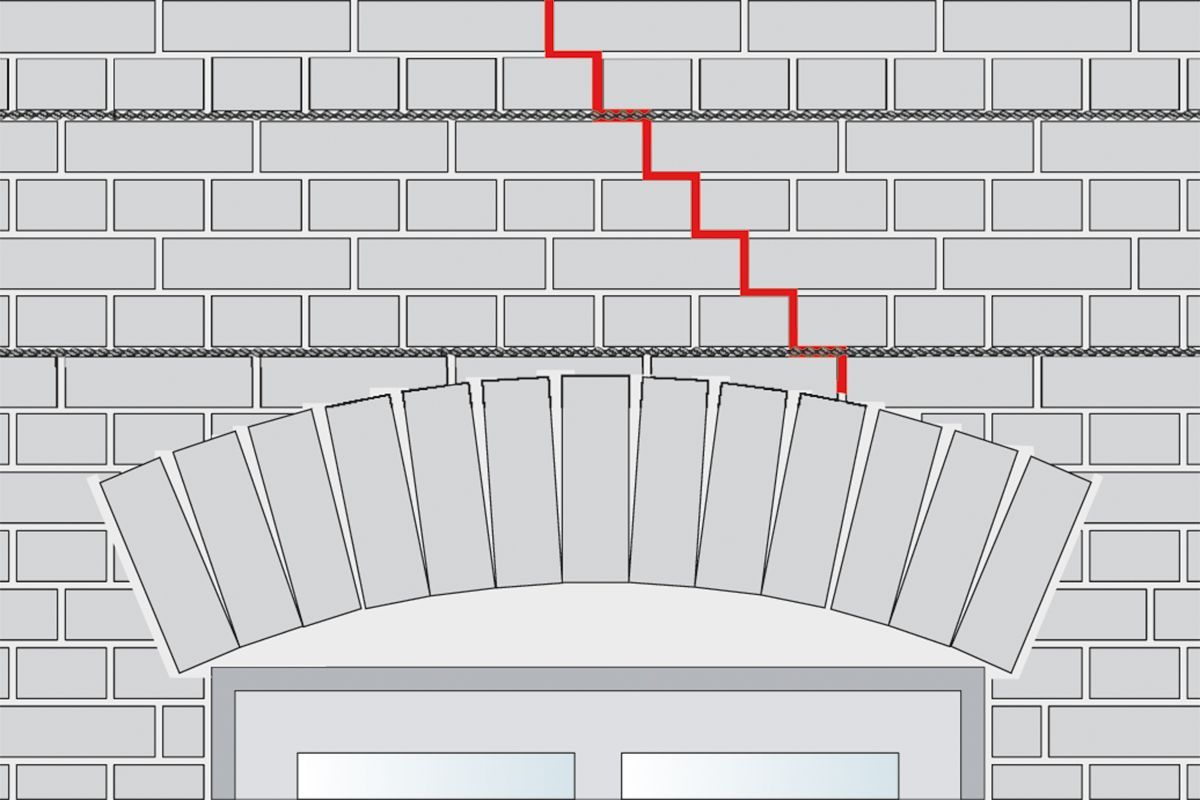

Cracks in the area of lintels and arches
